ME60

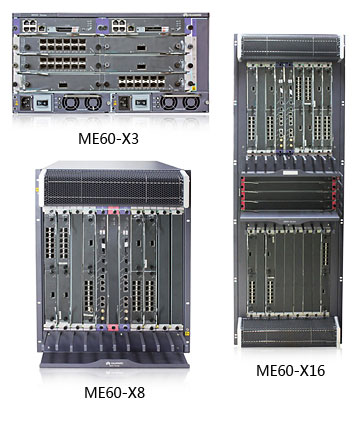

The ME60 Multi-Service Control Gateway (MSCG) series products are characterized as the best BRAS in industry. The first MSCG was deployed in 2002, and 23,600 sets have been deployed. The sophisticated ME60 series include 3 models for sale now: ME60-X3, ME60-X8 and ME60-X16, which have 3, 8 and 16 I/O slots respectively.

Huawei ME60 has been recognized for large capacity & huge concurrent subscribers, outstanding reliability making nonstop services, and full services bearing solution.

400G hardware platform & 1st 40G BRAS

The ME60-X series chassis is designed on the 400G hardware platform and 10G/20G/40G flexible plug-in cards which provide the most flexibility to meet different requirements and reduce OPEX. And based on the self-developed chipset and abundant experiences in BRAS area, the 1st 40G BRAS in industry was released. Persistent and long term investment guarantee continuous evolution solution in ultra bandwidth era.

Largest concurrent subscribers

256K subscribers per chassis and 32K subscribers per LPU can be managed in a ME60, the operation and management are simplified. Meanwhile, Users can access the network through Ethernet, xDSL, WiMAX or PON. In addition, granular management is kept, and ME60 can provide multidimensionality management for subscribers, for example, security control, accounting, subscriber and services identifications, etc.

Elaborate operation capability

The ME60 is the creator and leader of Multi-Service Control Gateway in industry. With the elaborate operation ability, it can provide total full service bearing solution, making singlemetro and multi-play come true. Meanwhile, with the RACS (resource and admission control system), the ME60 can provide elaborate operation solution to provision Video on demand, QoS on demand, Dynamic Service selection, and so on.

The most complete H-QoS solution, including H-QoS, DS-TE and MPLS HQoS, ensuring E2E QoS deployment

Complying with the QoS scheduling model defined in DSL TR-059, the ME60 provides QoS scheduling by using a traffic management (TM) chip. The ME60 can:

Provide 5-level QoS scheduling capability.
Support the QoS of the access network, thus avoiding network congestion.
Provide QoS scheduling for each terminal and session.

The policy is separated from behavior, so the QoS is configured flexibly and deployed conveniently. Moreover, the TM is separated from the packet forwarding engine (PFE), so the QoS processing does not decrease the forwarding speed.The ME60 provides QoS scheduling for the IP and MPLS networks. To meet the QoS demands of IPTV and Metro Ethernet, the ME60 performs traffic classification and congestion management on multicast flows and layer 2 information. Thus the quality of new services can be ensured.

FCC and RET solution improve customers’ experience

iVSE is short for integrated Video Value-added Service Enhancement; Fast Channel Change (FCC) and Retransmission (RET) are two function sub-modules of the iVSE module. FCC is used to address the problem of slow switching between IPTV channels. RET is used to address the problem of packet loss. Packet loss in IPTV services may cause problems such as erratic display or even dark screens.
