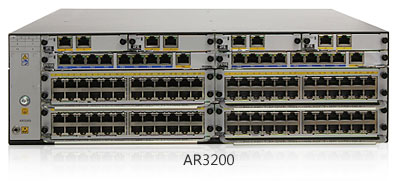

AR3200 Series Enterprise Routers

3rd Generation AR with Industry-Leading Performance

• Multi-core CPU
• The multi-core CPU improves the speed of concurrent processing of data and voice services, which makes it possible to deploy a large number of services.
• Non-blocking switching for service traffic
• The bus channel bandwidth of single slot is up to 10 Gbit/s.
• Independent protocol management, service processing, and data switching, ensuring high performance and improving service reliability
• Integrated routing and switching functions
• This feature improves the data switching efficiency between interface cards and simplifies device configurations and maintenance.
• Hot swappable interface cards and redundant components such as fan modules and power modules ensuring service reliability and stability

Dual-Mode Network, Supporting Flexible Access

Wireless Mode:
• 3G: Compliance with 3G standards, including CDMA2000 EV-DO, and WCDMA, providing flexible network access; NQA, monitoring the link real-time status and ensuring SLA; Link backup for enterprise services, improving reliability; Security VPN over 3G links, ensuring reliable service transmission
• LTE: Switching from 3G networks to LTE networks supported in future, protecting customers' investments

Wired Mode:
• Fiber: Support for GigabitEthernet and CPOS optical interfaces, allowing flexible network access; 1 Gbit/s bandwidth or higher bandwidth, meeting transmission requirements of bandwidth-thirsty services such as voice services; Support EPON/GPON interface cards
• Copper cable : Support for various interfaces, including xDSL interfaces, E1/T1 interfaces, serial ports, and ISDN interfaces, protecting customers' investments; Uplink access rates ranging from 64 kbit/s to 1 Gbit/s, which can be selected by customers

Services Integrated on One Router

The AR3200 integrates routing, switching, 3G, voice, and security functions.

Open Service Platform

The AR3200 interconnects with the mainstream third-party IT systems by using the Open Service Platform (OSP) to provide a unified communication solution for enterprise users. The customers, agents, third-party vendors, and manufacturers can develop and use the AR3200 as required.

• Fast service integration and customization, meeting customized requirements
• Service integration without deploying dedicated servers, saving investments and simplifying management
• Services synchronized with cloud-side services, local services processed locally, which improves service quality and efficiency.

Outstanding Voice Experience

The AR3200 provides various voice functions for enterprise data networks, enabling the enterprises to communicate flexibly and efficiently.

• Basic voice functions provided by the built-in PBX, SIP server, and SIP access gateway
• Value-added voice services, including multi-party communication, IVR automatic connection, ring-back-tone, parallel ringing, sequential ringing, one number link you (ONLY), bill management, and subscriber management
• Intelligent call routing, ensuring high reliability of voice services
• Interconnection with the NGN/IMS/PBX/terminal of mainstream vendors
• QoE, detecting voice service quality in real time
• Jitter buffer, echo cancellation, and packet loss compensation, improving customer experiences

Security

During service provision, the AR3200 ensures security of enterprise networks. It provides a complete security protection mechanism including user access control, packet detection, and active attack defense. This mechanism protects customers' investments.

• Built-in firewall
• Authentication technologies on ports, such as 802.1x authentication, MAC address authentication, and portal authentication
• Authentication methods, including RADIUS and HWTACACS
• VPN technologies, including IPSec VPN, GRE VPN, DSVPN, L2TP VPN and SSL VPN

Intelligent Service Deployment

As the enterprise scale increases, enterprise users have high requirements on service deployment. The AR3200 provides the following service deployment functions:

• The AR3200 provides a mini-USB port. By using the mini-USB, users can configure the devices through GUI.
• Users can use the USB disk to deploy devices, and the devices are plug-and-play.
• The AR3200 supports the auto-config function. The auto-config function enables the AR3200 to automatically obtain configurations.

Simplified Service Management

Enterprise users require simply service management. The AR3200 provides the following functions to simplify service management:

• The AR3200 works with the eSight network management system to simplify device management.
• The AR3200 provides the NQA function to monitor links in real time.
• By using the NetStream function provided by the AR3200, users can view traffic characteristics and statistics clearly, which is basis for network optimization.

Huawei AR3200 series enterprise routers (AR3200) are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP), which take advantage of Huawei long-term accumulation in data communication, wireless, access network, and core network fields. The AR3200 integrates routing, switching, 3G, voice, and security functions. It uses a multi-core CPU and non-blocking switching structure that provides industry-leading system performance, meeting service development requirements both now and in the future. The AR3200 provides an integrated solution for enterprise networks, speeds up multi-service provision, and protects customers' investments.

Model	Characteristic
AR3260	Forwarding capacity: 2 Mpps (With SRU40), 4 Mpps (With SRU80) WAN speed with services: 600Mbps(With SRU40), 1800 Mbps(With SRU80) Fixed port: 3*GE (two combo ports) Slot: 4*SIC + 2*WSIC + 4*XSIC Dimensions (HxWxD): 130.5mm x 442 mm x 470 mm
